How do I: Create An Advanced SQL Database Backup Monitor In Visual Studio?

My favorite part of my job is getting to work with customers and understand exactly how they use, and also need a product to work. Some of the time this just means listening closely, answering questions, and relaying information back to the product group. But often there are those tiny changes and use cases that fall outside the realm of things the product group is likely to address.

A change that might be hugely valuable for Customer A, won’t happen if it breaks backwards compatibility for Customers B-Z.

One of my customers has a SCOM environment for SQL that monitors over 20,000 databases. Due to their size there are often cases where the out-of-box monitoring provided by the SQL Product Groups management packs isn’t able to completely meet their needs. While the pack provides fantastic monitoring for SQL, there are times where they need a more granular view of the health of their environment.

An instance of this from the past year was monitoring SQL Database backups. The SQL Product Group’s pack gives you the ability to alert if a database hasn’t been backed up in a certain number of days. By default it is set to 7 days, but you can override that to any integer value of days.

For my customer this wasn’t really good enough. They wanted to be able to drill down and alert on hours since last backup. They also wanted multiple severities so if it had been 20 hours since a backup, an e-mail could go out, but at 30 hours we would generate a page. The 20 & 30 hours would be customizable at the individual database level, and they also wanted some added logic that would check database backups for databases that had a status of “ONLINE”. We have other monitors that look at DB Status in general so in this case if a database was OFFLINE they either knew about it from the other monitors and were fixing it, or it was intentional in which case they didn’t want a backup alert.

The basic logic behind the SQL PG’s MP is a simple T-SQL query wrapped in a fairly complex vbscript. The unwrapped T-SQL is below:

The T-SQL modifications we need to make are relatively simple swap DAY to HOUR, and add in a line to only return database backup info for databases with a status of ONLINE.

To get this into a working Management Pack is a little bit more complex and requires isolating and cloning the Product Groups Database Backup Monitor in Visual Studio, and then making a few changes to the XML for our custom iteration.  To prevent screenshot overload I did a quick step-by-step walkthrough of the process. For this video I opted to leave out three-state severity request, and will show how to add that functionality in a follow up video.

If you have any questions or need any help, just leave a comment.

Tagged , , , , , ,

How do I: Create a task that will allow me to bulk adjust a regkey via the SCOM Console

There are lots of ways to adjust reg keys in bulk. SCCM, Group Policy, Remote PowerShell to name a few.

Occasionally I find that SCOM customers like to have the ability to modify a registry setting via a Task in the SCOM console. This gives them the ability to modify the regkey for a single server, a group of servers, all servers, whatever they want in a matter of seconds without having to rely on outside tools.

Recently I have had a few customers need to adjust the MaxQueueSize reg key for their agents:

This is actually a fairly good simple MP Authoring exercise so I will quick walkthrough the process.

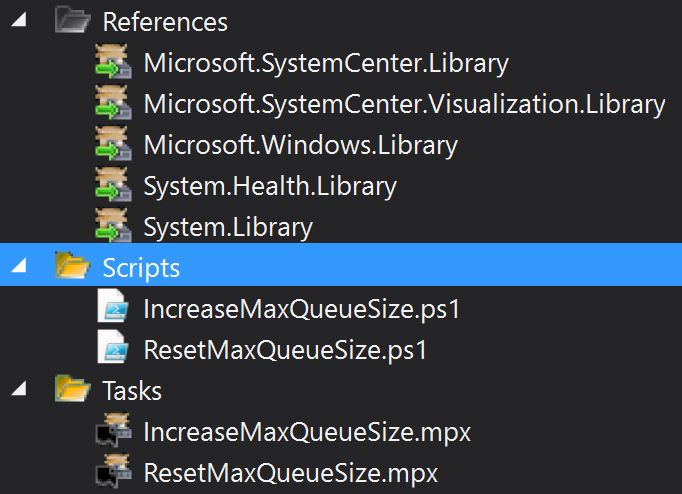

The end design in Visual Studio will look like this:

regkeymp

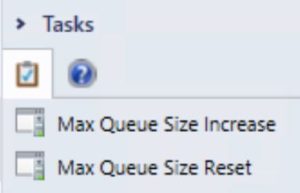

Easy enough, two Tasks, and two Scripts, standard out-of-box references – which then generate two tasks in the console:

task

Usually for something like this I like to start with the PowerShell before I break open Visual Studio. It is easier for me to get the script working in the PowerShell ISE and then start a new MP once I know I have the PowerShell working.

For the most part the PowerShell is pretty straight forward. The only complication I ran into in testing was that  since some of my customer’s agents are multi-homed and some aren’t I needed a way to handle either scenario without erroring out. Handling multiple management groups adds three lines of code to my original script, but still not too bad:

$GetParentKey = Get-Item -Path ‘HKLM:\SYSTEM\CurrentControlSet\services\HealthService\Parameters\Management Groups’
$MGName = $GetParentKey.getsubkeynames()
Foreach ($Name in $MGName)
{
Set-ItemProperty -Path “HKLM:\SYSTEM\CurrentControlSet\services\HealthService\Parameters\Management Groups\$Name” -Name ‘maximumQueueSizeKb’ -Value 76800 -Force
}


To make things as simple as possible in this example I am using hardcoded QueueSize Values. One Task to increase the queue size to 75 MB, and one to set it back to the default of 15 MB.

$GetParentKey = Get-Item -Path ‘HKLM:\SYSTEM\CurrentControlSet\services\HealthService\Parameters\Management Groups’
$MGName = $GetParentKey.getsubkeynames()
Foreach($Name in $MGName){
Set-ItemProperty-Path “HKLM:\SYSTEM\CurrentControlSet\services\HealthService\Parameters\Management Groups\$Name” -Name ‘maximumQueueSizeKb’ -Value 15360 -Force
}

Now that we have the scripts we can open up our copy of Visual Studio with the Visual Studio Authoring Extensions:

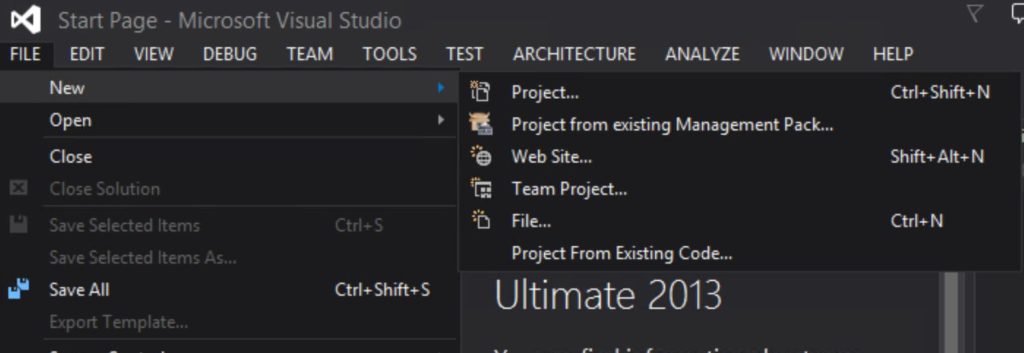

File – New Project

newproj

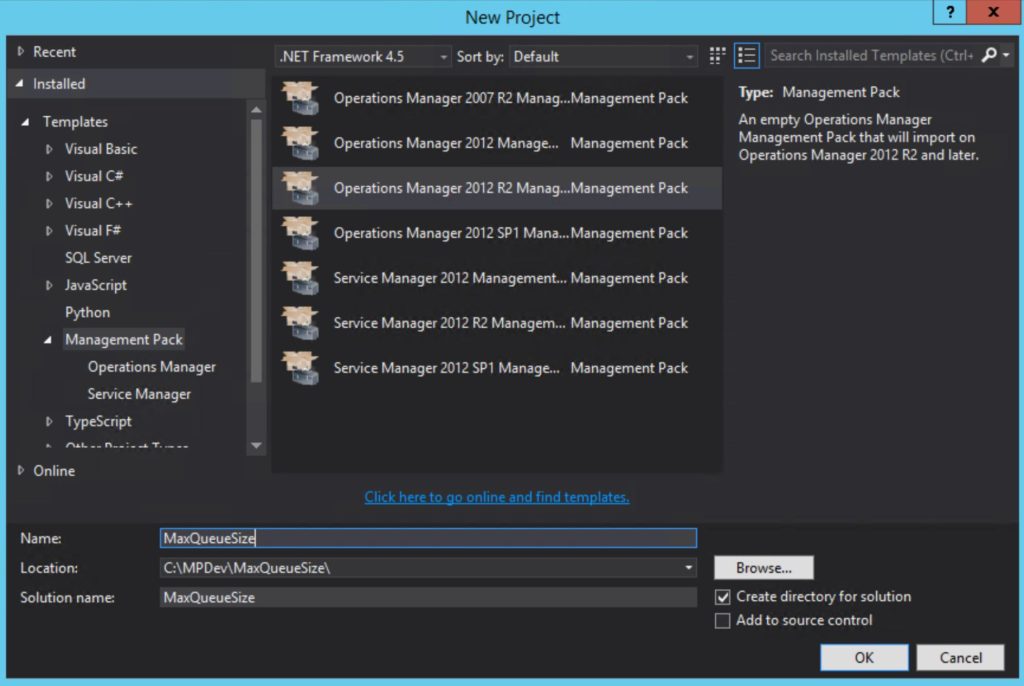

Management Pack – Operations Manager 2012 R2

opsproj

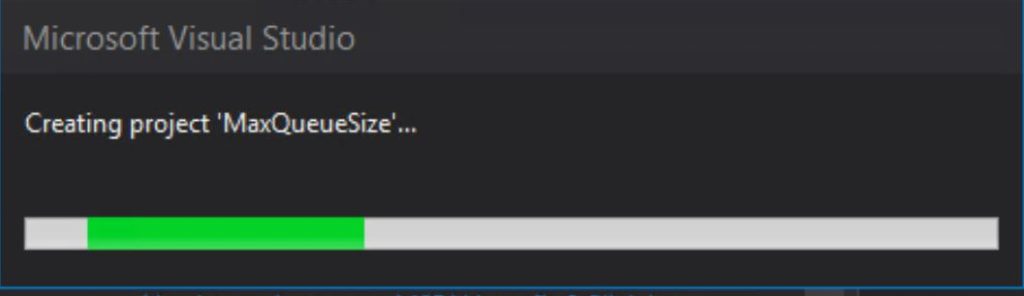

create

We are going to create two folders. These aren’t required, I just like adding a little bit of organization rather than dealing with one large .mpx file. Ultimately how you divide things up is somewhat arbitrary and more a matter of personal preference rather than any specifc rules.

To create a folder. Right-click MaxQueueSize – Add – New Folder

new-folder

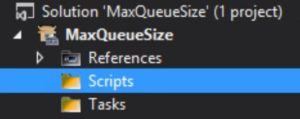

Do this two times. We will create one folder called Scripts and one called Tasks:

scripts

Now we need to populate our Scripts folders with the two PowerShell scripts we wrote in the ISE earlier.

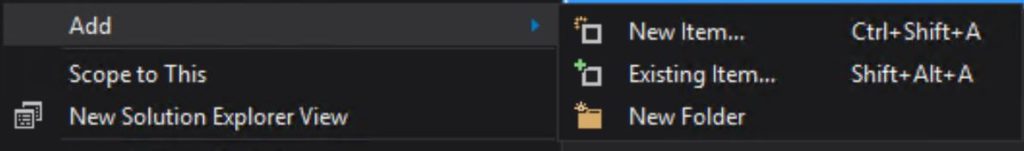

Right-Click the Scripts folder – Add – New Item

addnewitem

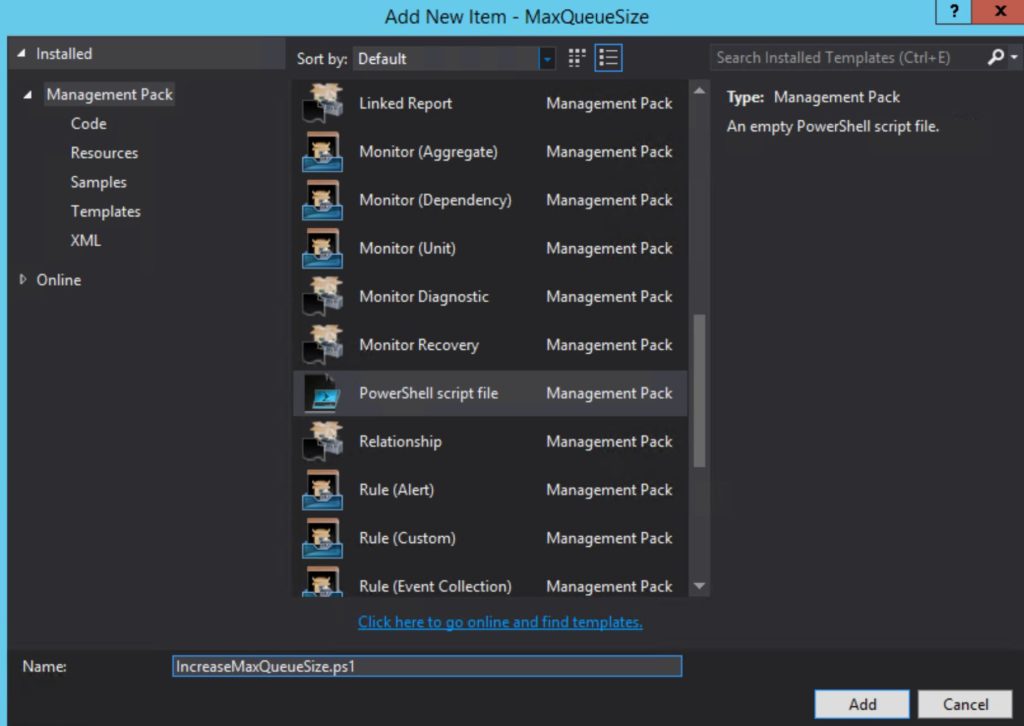

PowerShell script file – Name file – Add

powershell-script-file

Now you can paste in the code we wrote in the PowerShell ISE

increasemaxsize

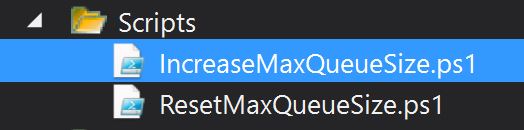

This takes care of the Increase Max Queue Size PowerShell. Now repeat the steps above for the reset max queue size script:

powershell-scripts

Now we need to populate our Tasks folder

Right-Click Tasks Folder – Add – New Item

add-new-task

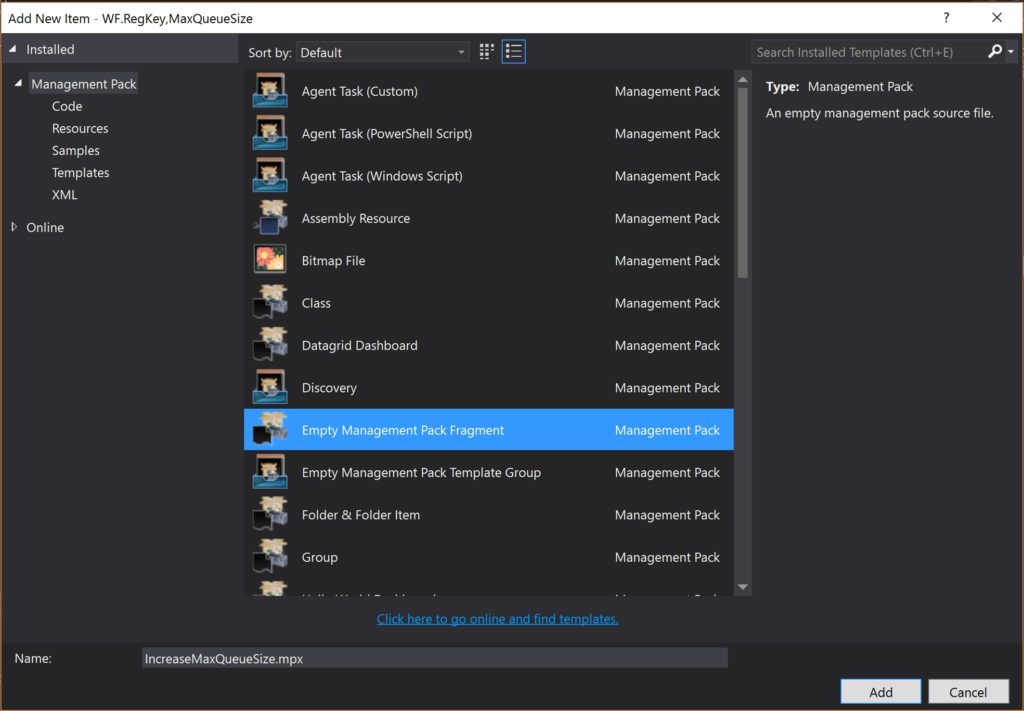

Empty Management Pack Fragment – IncreaseMaxQueueSize.mpx – Add

increasetask

The code for a task that kicks off a PowerShell script is pretty easy:


<ManagementPackFragment><SchemaVersion>
=”2.0xmlns:xsd=”http://www.w3.org/2001/XMLSchema“>
<Monitoring>
<Tasks>
<Task ID=”Sample.RegKey.IncreaseMaxQueueSize.AgentTaskAccessibility=”InternalTarget=”SC!Microsoft.SystemCenter.ManagedComputerEnabled=”trueTimeout=”300Remotable=”true“>
<Category>Custom</Category>
<ProbeAction ID=”ProbeTypeID=”Windows!Microsoft.Windows.PowerShellProbe“>
<ScriptName>IncreaseMaxQueueSize.ps1</ScriptName>
<ScriptBody>$IncludeFileContent/Scripts/IncreaseMaxQueueSize.ps1$ </ScriptBody>
<SnapIns />
<Parameters />
<TimeoutSeconds>300</TimeoutSeconds>
<StrictErrorHandling>true</StrictErrorHandling>
</ProbeAction>
</Task>
</Tasks>
</Monitoring>
<LanguagePacks>
<LanguagePack ID=”ENUIsDefault=”true“>
<DisplayStrings>
<DisplayString ElementID=”Sample.RegKey.IncreaseMaxQueueSize.AgentTask“>
<Name>Max Queue Size Increase</Name>
<Description>Increase Max Queue Size Regkey to 75 MB</Description>
</DisplayString>
</DisplayStrings>
</LanguagePack>
</LanguagePacks>
</ManagementPackFragment>

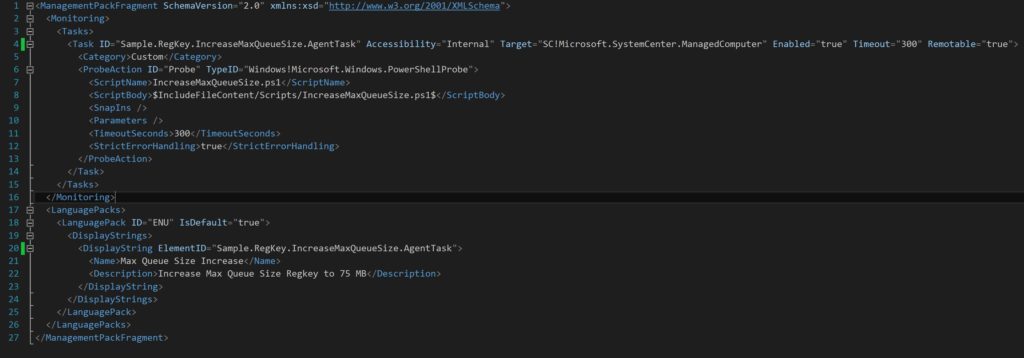

taskxml

You do this for both tasks and associate each with the appropriate PowerShell file.

So Visual Studio will look like this:

regkeymp

And once you build and import the pack you will have two tasks that will show up as options when you are in the Windows Computer State view:

task

If anyone wants these instructions in video form, just post a comment below and I will record a step-by-step video walkthrough.

If the source files or finished MP are helpful again don’t hesitate to ask. Just post a comment and I will zip up the files and upload to TechNet or GitHub.
